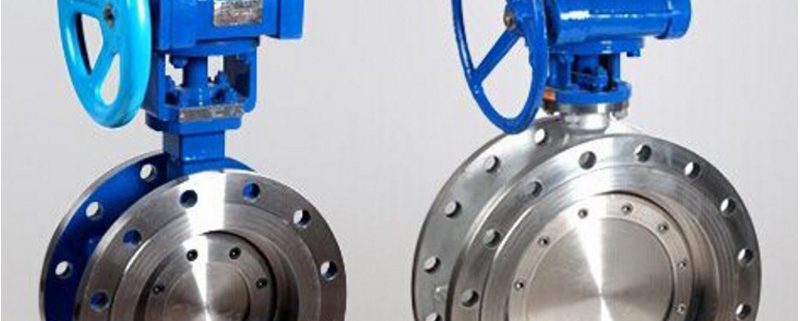

What is double eccentric butterfly valve?

The double eccentric butterfly valve is also called high-performance butterfly valve, which is mainly used for drainage of water works, power plants, steel smelting, chemical industry, water source spring engineering, environmental facilities construction and other systems, especially for waterway pipeline, as regulation and closure equipment. Compared with the center line butterfly valve, the double eccentric butterfly valve has higher pressure resistance, longer service life and better stability.

Working principle: double eccentric butterfly valve is further improved on the basis of single eccentric butterfly valve. The structural feature is that the axis of the valve stem deviates from the center of the butterfly plate and the body. The effect of double eccentricity enables the butterfly plate to break away from the valve seat immediately after the valve is opened, greatly eliminates the unnecessary over extrusion and scratch phenomenon between the butterfly plate and the valve seat, reduces the opening resistance distance, reduces the wear and improves the service life of the valve seat. At the same time, the double eccentric butterfly valve can also use metal seat, which improves the application of butterfly valve in high temperature field.

Structural characteristics:

1. It is reasonable in design, compact in structure, easy to install and dismantle, and easy to maintain.

2. Eccentric structure is adopted to reduce the friction of sealing ring and prolong the service life of valve.

3. Completely sealed, leakage zero. It can be used in ultra high vacuum condition

4. Replace the sealing ring, butterfly plate, rotating shaft and other materials of valve plate, which can be used in various media and different temperatures

Decho is a professional supplier of butterfly valves, if you need any for your project, pls contact us by e-mail [email protected]
