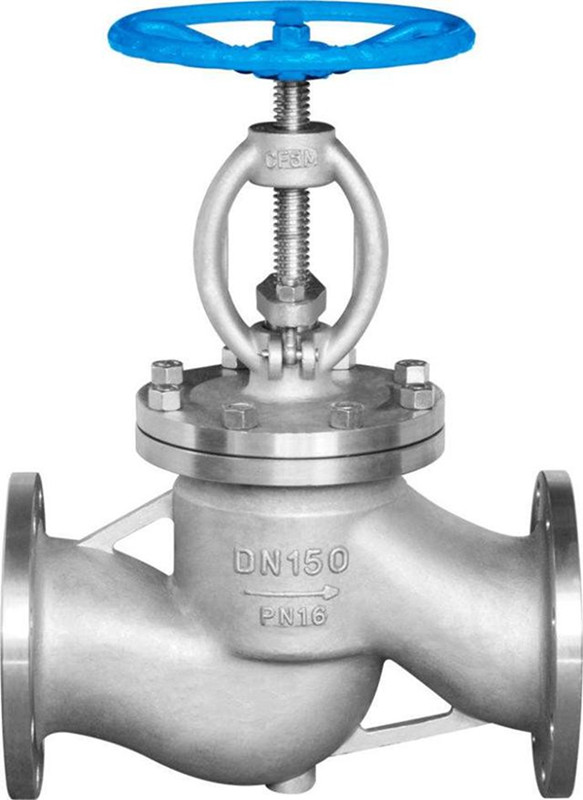

Want to buy cheap price of cs global valve ? Decho is a professional supplier on carbon steel material valves . Buy from us with confidence .
The cs global valve has reasonable structure, reliable sealing, excellent performance and beautiful appearance. It can be used with standard pipe flanges and flange sealing surface in the form, to meet the needs of various projects and user requirements.
Nominal size: DN 15 – DN250
Connecting flange: EN 1092 PN 6/10/16 ASME Class 150 AS 4087 PN 16
Sealing surface of flange: EN 1092 Form A /B ASME RF, FF
Operating temperature:- 20 ~ 120 ℃
Working pressure: 16/25/40 bar
【Body Materials】: Bonnet: Grey iron, Ductile iron
【Disc Materials】: Grey iron, Ductile iron
【Stem Materials】: Carbon steel, Stainless steel
1,The sealing surface has the advantages of good sealing performance, easy operation, no damage to the sealing surface, long service life and no water hammer phenomenon.
2,The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
3,Stem after the modulation and surface nit riding treatment, has a good corrosion resistance and abrasion resistance.
4,The product can be used with standard pipe flanges and flange sealing surface in the form, to meet the needs of various projects and user requirements.
-chemical and petrochemical industries
-Water treatment and sewage treatment
-Pneumatic conveying
-Shipbuilding
-Energy engineering
| PN(Mpa) | 1.6 | |
| Applicable Temperature | ≤200℃ | |
| Applicable Medium | Water, Oil, Gas and corrosive medium | |
| Main Material | Cast iron, brass, carbon chrome-plated) | |

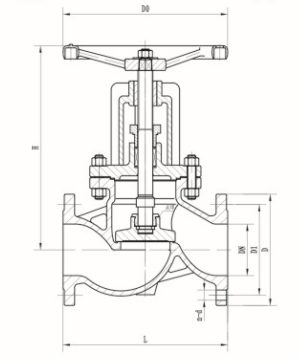

| DN(mm) | L | D | D1 | H | D0 | Weight(kg) |
| 15 | 130 | 95 | 65 | 105-125 | 73 | 4.25 |
| 20 | 150 | 105 | 75 | 105-125 | 73 | 4.7 |
| 25 | 160 | 115 | 85 | 115-135 | 95 | 5.85 |
| 32 | 180 | 135 | 100 | 120-140 | 95 | 9.2 |
| 40 | 200 | 145 | 110 | 140-165 | 125 | 11.35 |
| 50 | 230 | 160 | 125 | 160-185 | 125 | 16.6 |
| 65 | 290 | 180 | 145 | 196-220 | 170 | 20.3 |
| 80 | 310 | 195 | 160 | 285-330 | 217 | 30 |
| 100 | 350 | 215 | 180 | 305-360 | 260 | 40 |
| 125 | 400 | 245 | 210 | 367-396 | 280 | 56 |
| 150 | 480 | 280 | 240 | 431-465 | 320 | 80 |
| 200 | 600 | 335 | 295 | 513-562 | 400 | 122 |
| 250 | 650 | 405 | 355 | 577-635 | 400 | 179 |
