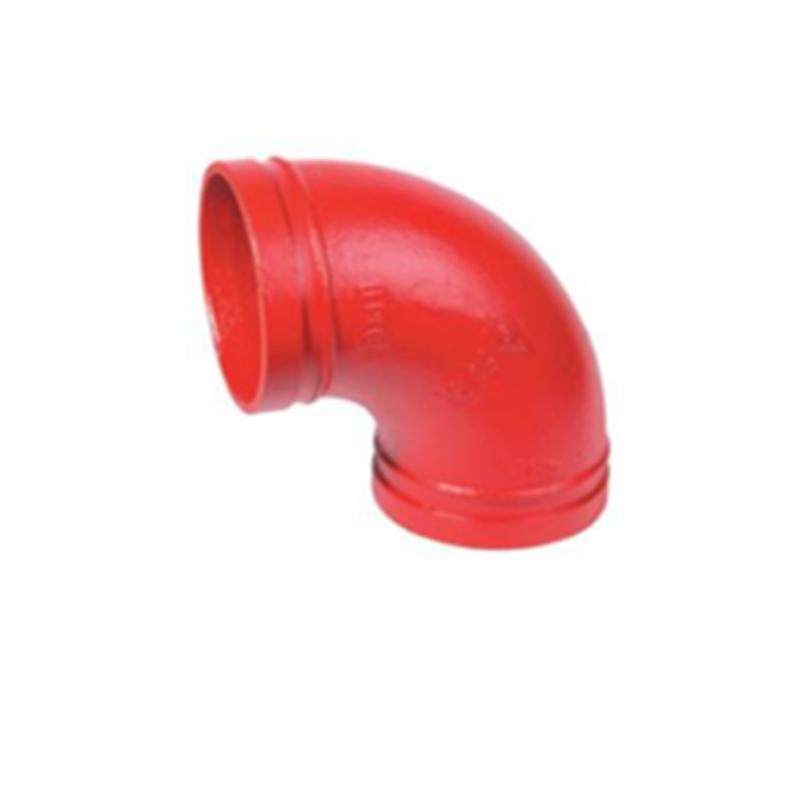

The 90° elbow is used for grooved pipe connections for connection at the bend of the pipe and changing the direction of the pipe.

The 90° elbow is suitable for medium and low pressure pipeline systems with nominal pressure 175-500 PSI, nominal size DN25-DN600, temperature range of -20 ℃-+180℃, which are widely applied in water supply and drainage, fire-fighting, air conditioning, etc.

Description

DI GROOVED FITTINGS-90° ELBOW

1. Description of Products

The 90° elbow is used for grooved pipe connections for connection at the bend of the pipe and changing the direction of the pipe.

Dimensions:

1″(DN25)– 24″(DN600)

Design Standard:

ISO6182, AWWA C606, GB 5135.11

Connection Standard:

ASME B36.10, ASTM A53-A53M, ISO 4200

Working Pressure:

175PSI-500PSI

Application:

The 90° elbow is suitable for medium and low pressure pipeline systems with nominal pressure 175-500 PSI, nominal size DN25-DN600, temperature range of -20 ℃-+180℃, which are widely applied in water supply and drainage, fire-fighting, air conditioning, etc.

Material of Pipe :

Welded and seamless rolled steel pipes according to ASME B36.10, ASTM A53-A53M, ISO 4200, GB/T 21835

Specification of Material

ASTM A536, Ductile iron according to 65-45-12. The nodularity is more than 90%, ensuring excellent physical and mechanical properties

Surface Treatment:

Electrophoreticpainting
Epoxy powerpainting
Hot-dipgalvanizing
Black
Others would be available upon clients’ detailedrequest

2. DIMENSIONS

Nominal	Pipe	Working	Dimensions	Nominal	Pipe	Working	Dimensions
Size	O.D.	Pressure	L	Size	O.D.	Pressure	L
mm/in	mm/in	PSI/MPa	mm/in	mm/in	mm/in	PSI/MPa	mm/in
25	33.7	500	57	200	219.1	500	197
1	1.315	3.45	2.24	8	8.625	3.45	7.75
32	42.4	500	70	250	267.4	300	229
1¼	1.66	3.45	2.75	10	10.528	2.07	9
40	48.3	500	70	250	273	300	229
1½	1.9	3.45	2.75	10	10.75	2.07	9
50	60.3	500	82.5	300	318.5	300	254
2	2.375	3.45	3.25	12	12.539	2.07	10
65	73	500	95	300	323.9	300	254
2½	2.875	3.45	3.74	12	12.75	2.07	10
65	76.1	500	95	350	355.6	300	280
2½	3	3.45	3.74	14	14	2.07	11.02
80	88.9	500	108	350	377	300	279
3	3.5	3.45	4.25	14	14.84	2.07	10.98
100	114.3	500	127	400	406.4	300	305
4	4.5	3.45	5	16	16	2.07	12
125	133	500	122	400	426	300	305
5	5.25	3.45	4.8	16	16.77	2.07	12
125	139.7	500	140	450	457.2	300	394
5	5.5	3.45	5.5	18	18	2.07	15.5
125	141.3	500	140	450	480	300	335
5	5.563	3.45	5.5	18	18.9	2.07	13.19
150	165.1	500	165	500	508	300	438
6	6.5	3.45	6.5	20	20	2.07	17.25
150	168.3	500	165	600	609.6	300	508
6	6.625	3.45	6.5	24	24	2.07	20
