Technical specifications
-stacked structure
-The mounting surface conforms to din24340 type A and iso4401
-With pressure gauge interface
Description

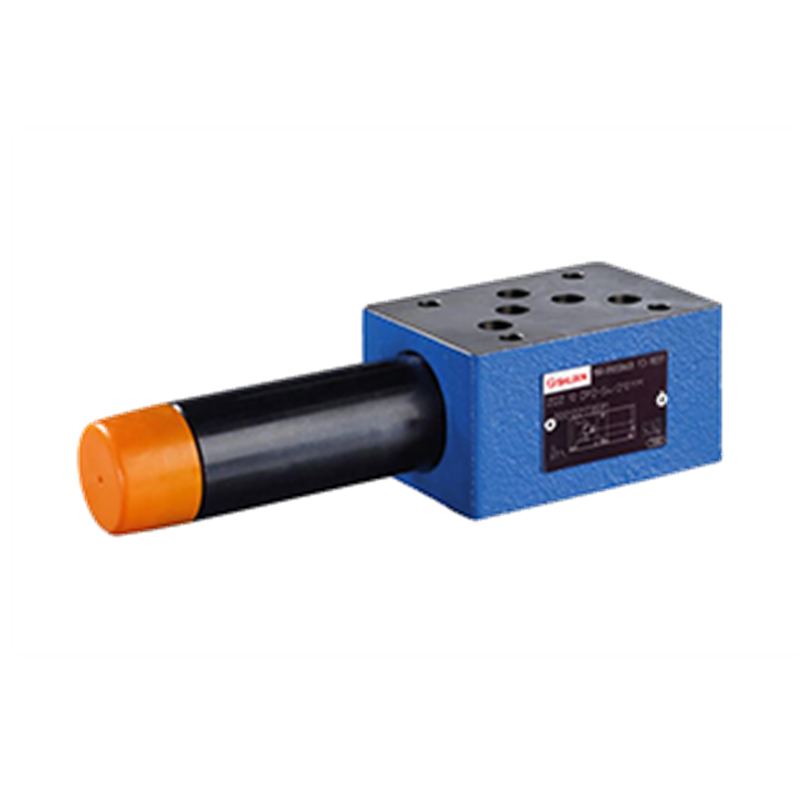

ZDZ6DP- Pressure Sequence Valve Direct Operated
| Fluid | Mineral oil suitable for NBR and FKM seal | |
| Phosphate ester for FKM seal | ||
| Fluid temperature range | ℃ | -30 to +80 (NBR seal) |
| -20 to +80 (FKM seal) | ||
| Viscosity range | mm2/s | 10 to 800 |
| Degree of contamination | Maximum permissible degree of fluid contamination: Class 9. NAS 1638 or 20/18/15, ISO4406 | |
| Max operation pressure (input) | bar | 315 |
| Max. sequence pressure setting | bar | 250 |
| Min. initial pressure | bar | 20 |
| Max flow | L/min | 60 |
| Weight | kg | About 1.3 |
